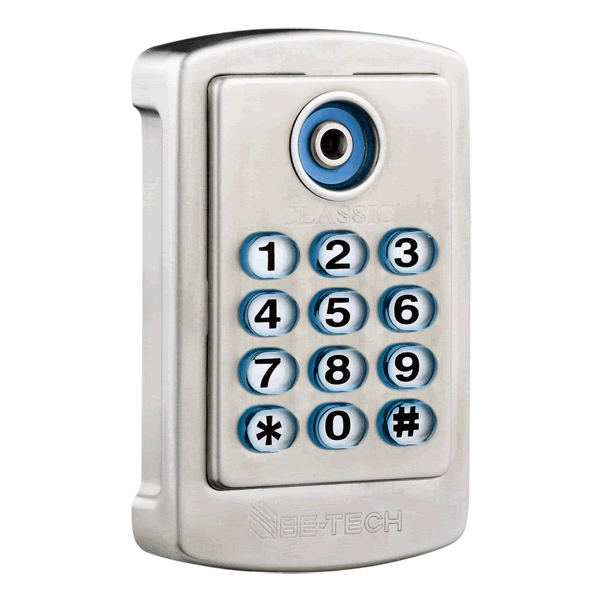

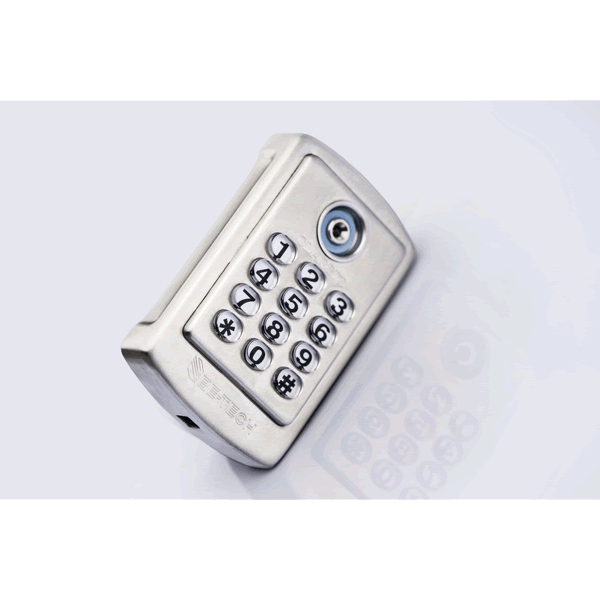

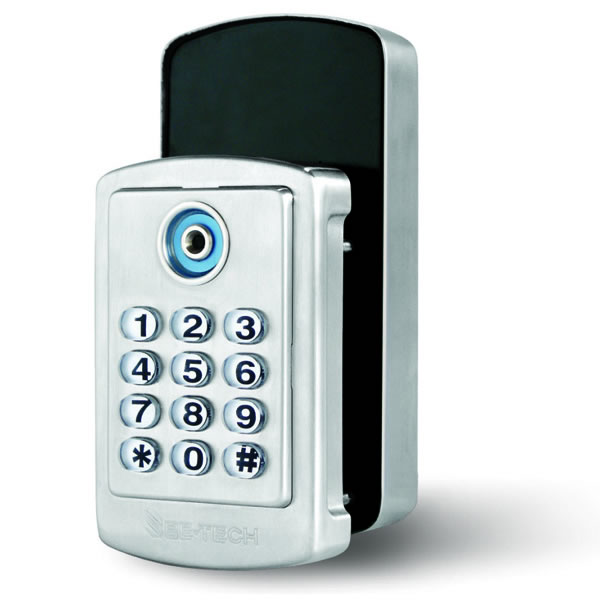

Electronic Cabinet Lock

Description All the benefits of the Be-Tech Cyber Digit Classic (3100DL) Keyless Cabinet Lock but tougher and more robust for challenging environment. With additional programming features, stainless steel material, and improved number of operations, the Cyber Digit Classic (3100DL) Keyless Cabinet Lock provides enhanced benefits to facility managers who are looking for easier access control without the need of keys.

Certification: CE, RoHS

Features

1. Private Function
This is the most common function and is used where the same code will be repeatedly used, e.g a pupil in a school or an employee with the same locker in the workplace.
2. Public Function
The Keyless Cabinet Lock operates with a single user code. The guest enters a personalcode with 4~9 digit to lock. The same code is entered to open the lock before being erased and ready for the next user. This function is used for short term or multi occupancy applications, e.g a locker in a gym center.

Technical Parameter

Power:4 × 1.5 AA Batteries
Operations:15,000 Openings
Low battery: When lock signals ?°Low Battery?± there will be 100 additional openings
Memory: Non-Volatile memory will be retained when changing batteries
Battery Override: A battery case can be plugged in external round socket
Material: Stainless Steel
Door thickness: 12mm (0.47?±) up to 22mm (0.87?±)
Buttons: 12 individual square buttons
Functions: Private or Public
Fitting options: New or retrofit
Finish: Silver (Brushed Stainless Steel)
Accessories available:iButton, Override battery case
Codes & Keys : Cyber Digits Classic has 4 code & key levels
Owner key, Master key And
User code or User key
Unlocking feature: Automatic motor driving

Codes & iButton keys
The locks is supplied without factory preset codes & iButton keys
iButton keys have to order separately
Owner key (Red) : 1 group
Master key (Blue) : 3 group
User code : 1 group
User key : 1 group (optional)
Program both iButton keys & codes after lock has been installed

We have been a high quality supplier of Keyless Cabinet Lock in China for more than 20 years. With long year experience since our establishment in 1992, the electric cabinet locking system made by Be-Tech is certain to offer you reliable, flexible and valuable security solutions.

Download:
